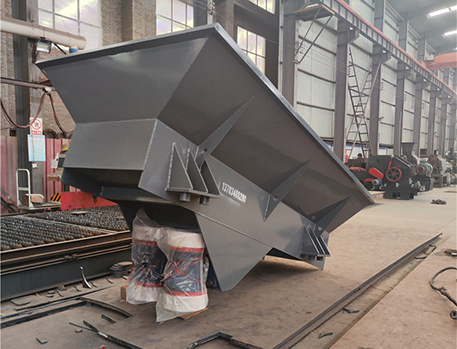

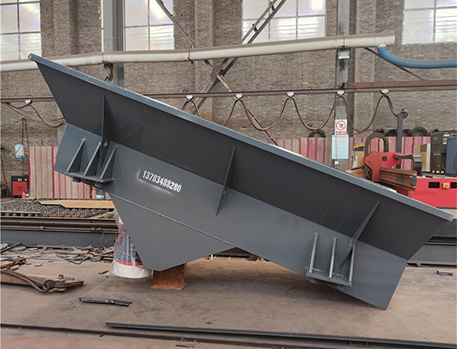

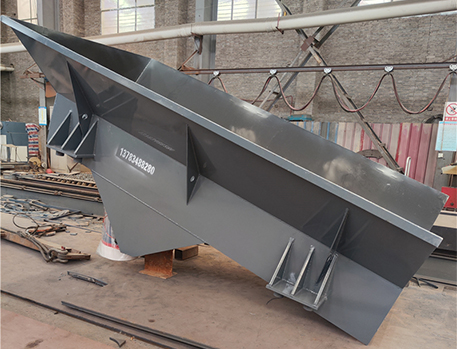

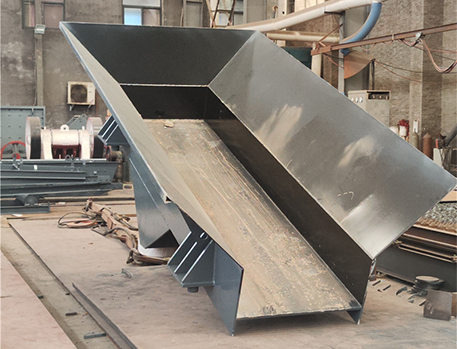

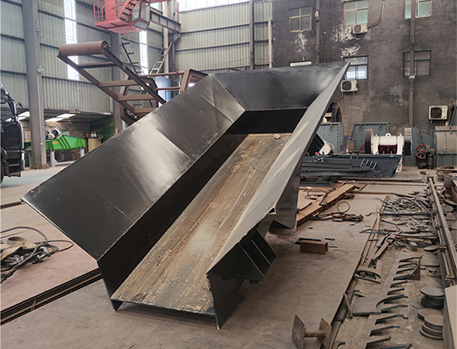

Vibrating feeder

Vibrating feeder, also known as vibrating feeder, is a device that can evenly, regularly and continuously feed bulk and granular materials from the storage bin to the receiving device.

Productintroduction

Vibrating feeder, also known as vibrating feeder, is a device that can evenly, regularly and continuously feed bulk and granular materials from the storage bin to the receiving device. It is widely used in metallurgy, coal mining, mineral processing, building materials, chemicals, abrasives and other industries crushing, screening combined equipment, especially in the sand production line, can be broken machinery continuous uniform feed, and coarse screening of materials.

Workingprinciple

Vibrating feeders work by generating vibrating forces to transport material from the silo to downstream equipment. Specifically, after the vibration motor is started, the rotor begins to rotate, generating centrifugal force. This centrifugal force is transmitted to the conveyor trough through the spring support device, so that the material is subjected to the action of vibration force. The material is subjected to the combined action of centrifugal force and gravity in the tank, showing a rolling, sliding and jumping transport mode, so that it is constantly pushed forward until it reaches the discharge port and enters the downstream equipment.

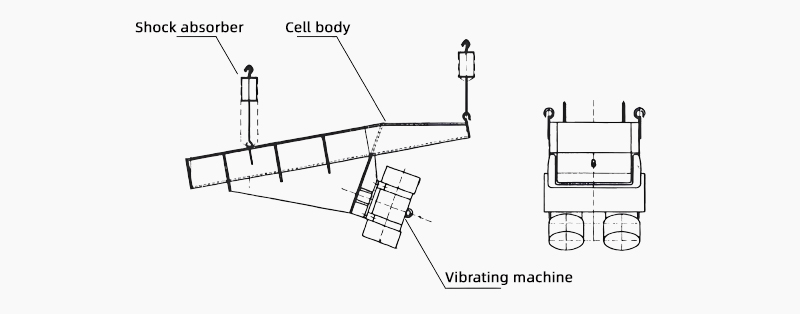

Constituentstructure

Vibration feeder is mainly composed of vibration motor, spring support device, conveyor groove and other components. Among them, the vibration motor is the key component to generate the vibration force, and the spring support device plays the role of connecting the vibration motor and the conveyor groove, and the vibration force is transferred to the conveyor groove. The conveying trough is the material conveying channel, and its design should ensure that the material can be uniformly and continuously transported.

Scope of application

The application range of vibration feeder is quite wide, covering building materials, coal, mining, metallurgy, chemical, power, food, medicine, light industry and glass and other industries. In these industries, vibrating feeders are used for continuous and uniform conveying and feeding, helping companies improve production efficiency, reduce costs, and achieve digital production. And suitable for a variety of materials, including block, granular materials, such as coal, ore, sand, chemical raw materials, etc. Its design enables the material to be transported uniformly and continuously, ensuring the stability and continuity of the production process.

Strengths

1. Adjustable feed rate: Vibrating feeder can adjust the feed rate according to needs, suitable for different production needs.

2. Simple structure: The structure of the vibrating feeder is relatively simple, there is no need to rotate parts, there is no need for lubricating oil, and it is convenient to maintain.

3. Small wear: The equipment transmits the material in a micro-throwing motion, and the wear of the material tank is small.

4. High temperature and corrosion resistance: the material tank of the equipment is made of alloy steel plate, which can be used to transport high temperature, serious wear and corrosive materials.

5. High control accuracy: the equipment controls the discharge of materials, and the accuracy of the quantity is relatively high, which can be applied to the automatic control of the production process.

6. High working efficiency: vibrating feeder can work continuously, which greatly improves production efficiency and saves labor costs.
