Fixed construction waste processing line

2024-05-18 15:06:15

Introduction of fixed construction waste treatment production line

Fixed construction waste processing line is composed of crusher, screening machine, silo, feeder, conveyor, ventilation and dust removal equipment and control system. Due to the different raw material conditions and product requirements, there can be different combinations to adapt to different process requirements and the needs of different production scales.

  • 【Applicable materials】 : Construction waste
  • [Application field] : the treatment and recycling of urban construction waste and the construction of roads and Bridges
  • [Equipment configuration] : feeder, jaw crusher, impact crusher, air separator, iron remover


Fixed construction waste treatment production line flow

The construction waste transported is first sorted, after sorting, the crushing material enters the vibrating screen, which is divided into two parts by the primary screening equipment, the coarse material on the screen is sent to the impact crusher for further crushing, and the broken material is removed by the magnetic iron remover. The crushed material can also be divided into different uses, different particle sizes of inorganic mixed aggregates, such as Germany in the fixed construction waste recycling plant in accordance with the German standard DIN4226 requirements of the recovered construction waste processing into 0 ~ 32mm, 0 ~ 45mm, 0 ~ 65mm inorganic mixed aggregates, And can provide for special needs occasions, grading requirements of granular aggregate, such as O ~ 8mm, 8 ~ 16mm, 16 ~ 32mm graded aggregate and so on.

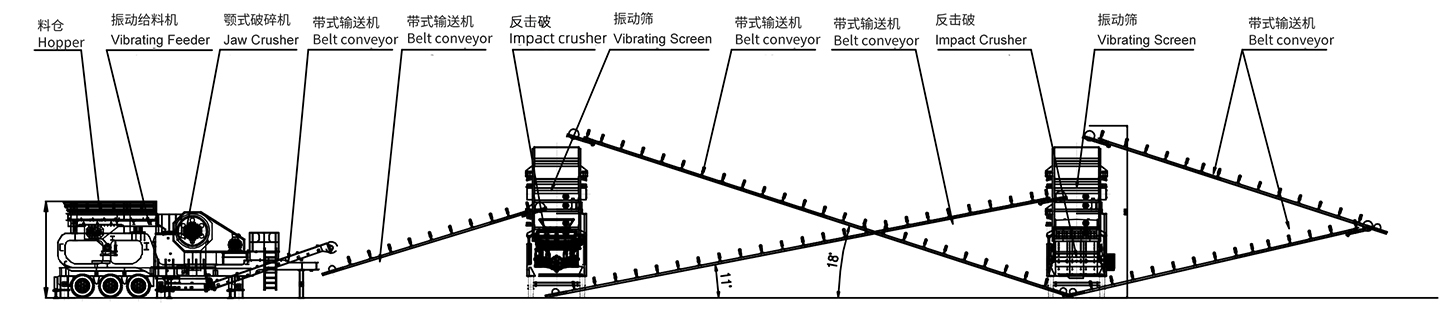

Fixed construction waste treatment production line flow

Basalt sand production flow chart

Performance of fixed construction waste processing line

1, easy to comprehensive management, production and living facilities system, comprehensive treatment conditions for the protection of the environment, can effectively control production costs;
2, one installation and commissioning, can be continuous production, but also save the adjustment time spent by moving the site;
3, there are sufficient spare parts, spare parts warehouse, can meet the needs of continuous production.

Construction waste recycling products

The aggregate that can replace natural sand and stone is produced by classifying and grading the construction waste. Some of the aggregate is used as raw materials for deep processing by the enterprise, with the cement produced by the enterprise itself, for the production of ready-mixed mortar, cement mix, wall panels and components and other products, and the rest is sold as commercial aggregate to concrete mixing stations, ready-mixed mortar stations, and highway foundation backfill. The powder and soil selected by the wind are supplied to the building materials manufacturers for the production of blocks and the garden departments for greening.
Special topic: Construction waste disposal


Technical description:

1. This process is designed according to the parameters provided by the customer. This flowchart is for reference only.

2. The actual construction should be adjusted according to the terrain.

3. The mud content of the material can not exceed 10%, and the mud content will have an important impact on the output, equipment and process.

4. Yuyuan Machinery can provide process plan and technical support according to the actual requirements of customers, and can also design non-standard supporting parts according to the actual installation conditions of customers.
