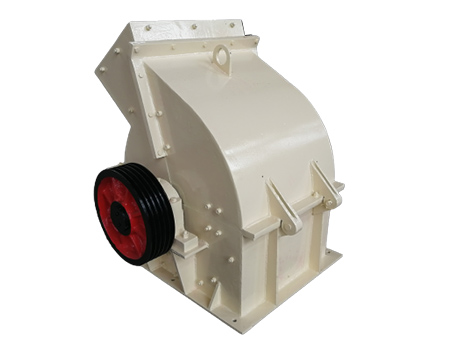

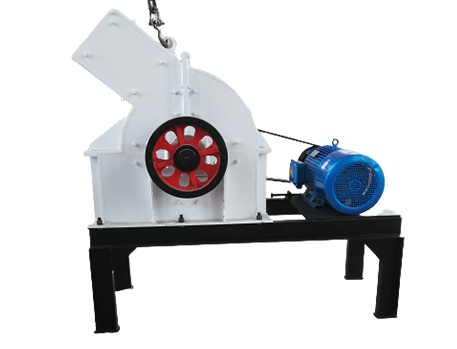

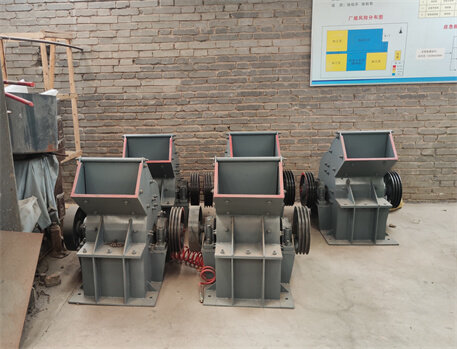

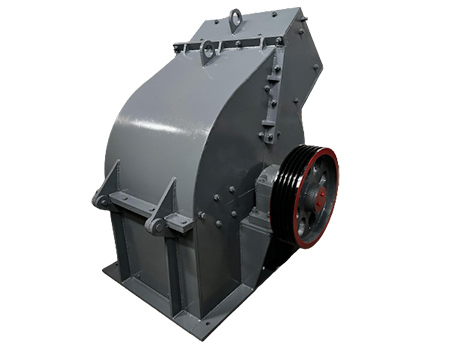

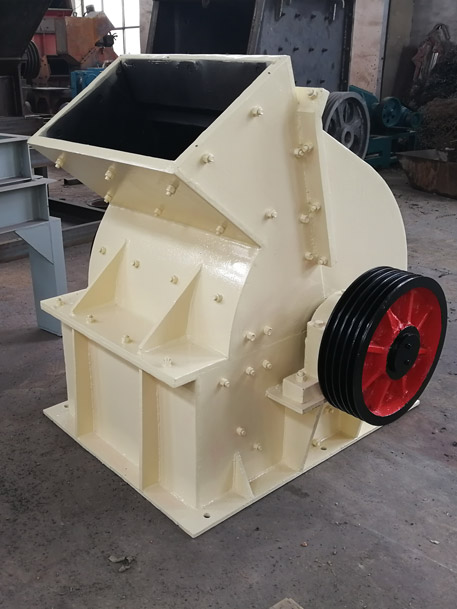

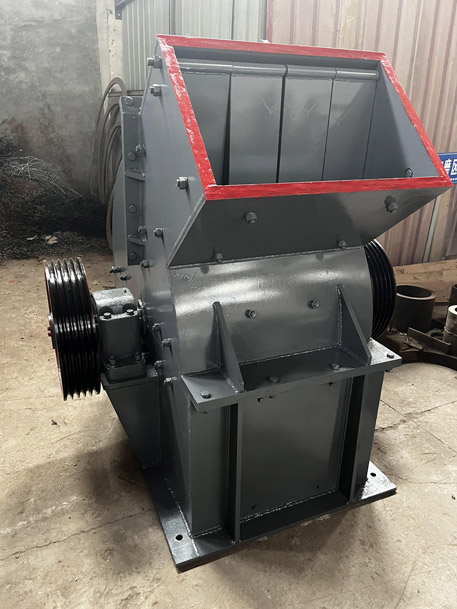

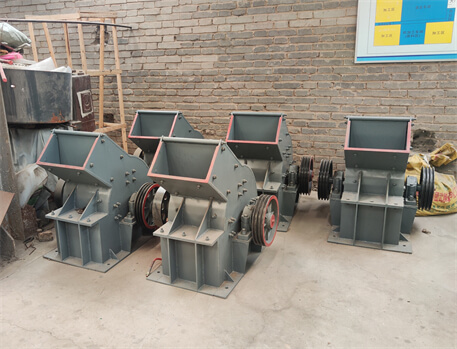

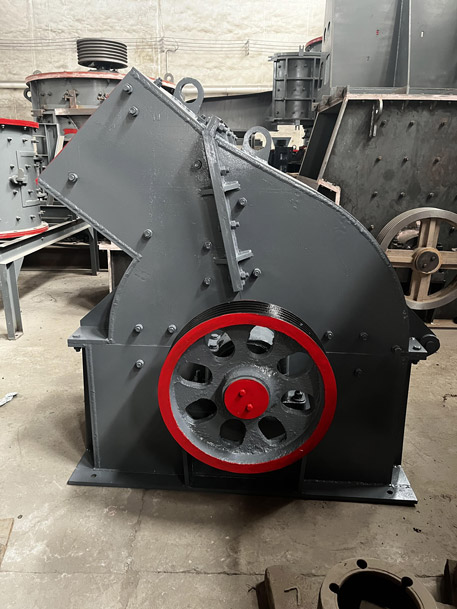

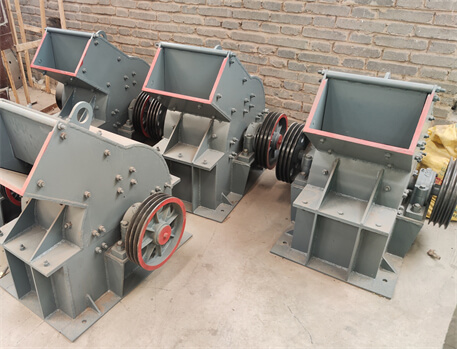

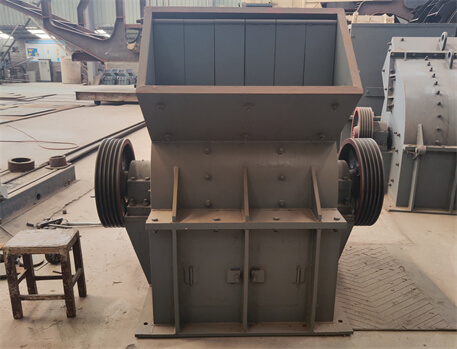

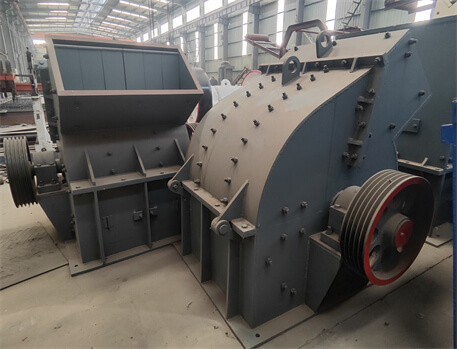

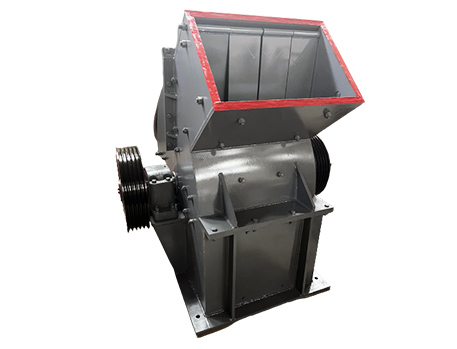

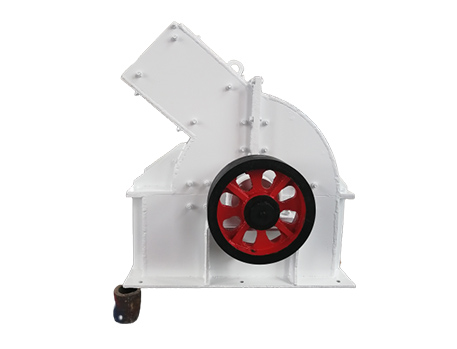

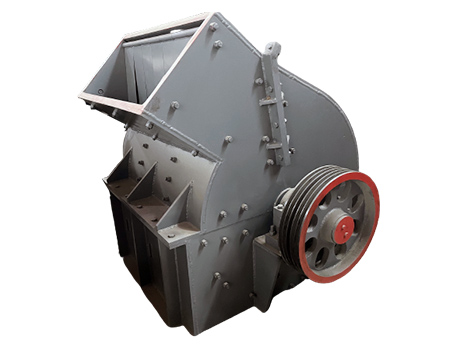

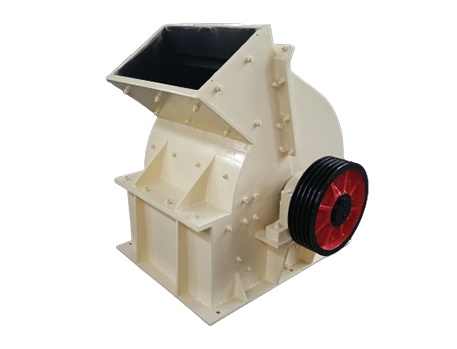

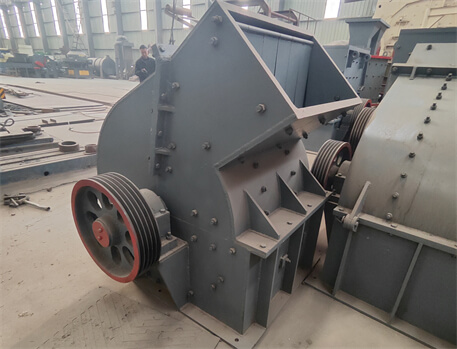

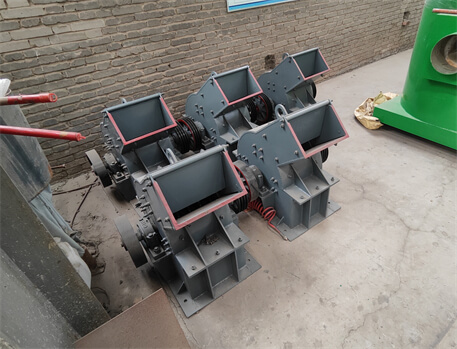

Hammer crusher, also called hammer breaker, crushes materials in the form of impact. It can directly crush materials with a particle size of 600-1800mm into 25mm or less. The hammer crusher is applicable to crushing materials of medium hardness in industrial sectors such as cement, chemical industry, electric power, and metallurgy, e.g. The secondary and fine crushing of limestone, slag, coke, and coal.
It has beautiful appearance design and sealed hammer body, which avoids the dust pollution in the crushing workshop and dust leakage from the machine.
Its process is simplified that it only needs to feed materials one time and needs no primary and secondary crushing, featured by high yield, reliable performance, and large processing capacity.
The hammer is cast with new technology, which is wear-resistant and impact-resistant, with few wearing parts and easy maintenance.

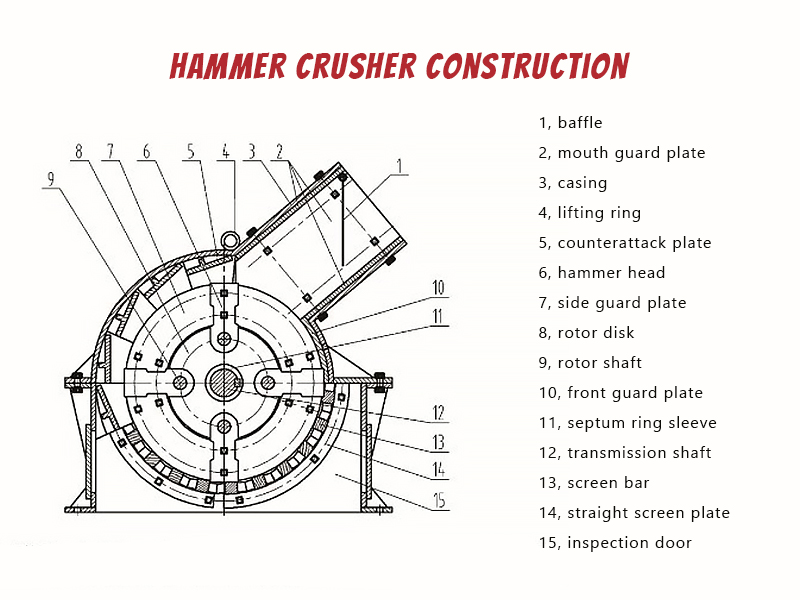

The hammer crusher mainly crushes materials by impact energy. When materials enter the crusher chamber uniformly, the motor drives the rotor to rotate at a high speed, and then the high-speed rotating hammer impacts, cuts, and tears the materials. At the same time, due to the gravity of the materials, the materials hit from the high-speed rotating hammer to the baffle plate and screen bar in the frame. The materials larger than the screen hole size are retained on the sieve plate and continues to be impacted and ground by the hammer until they are broken to the qualified size. Then they are discharged out of the machine through the sieve plate.
|Specification||Production capacity (m3/h)||Motor power (kw)|
