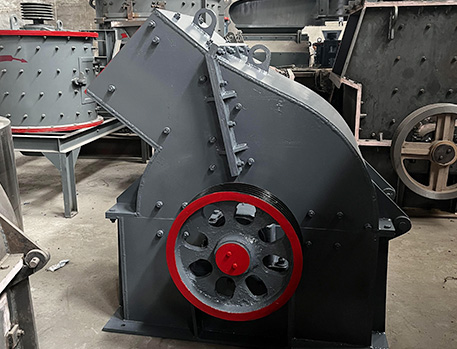

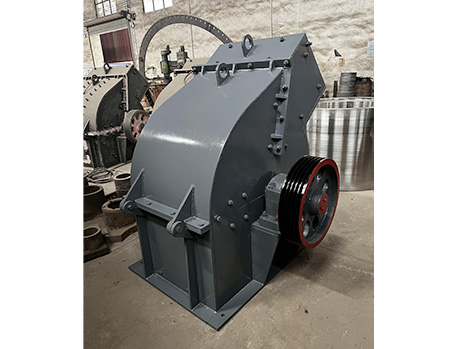

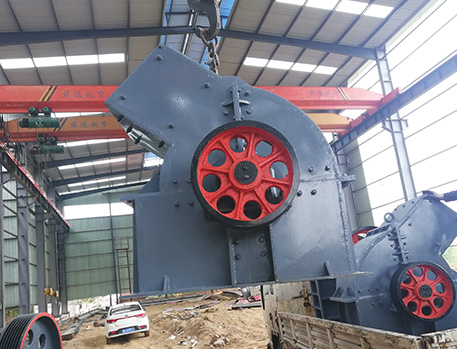

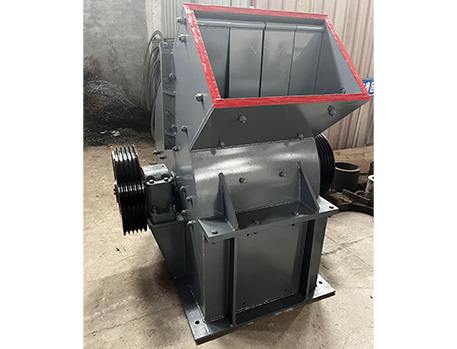

Hammer Crusher

Hammer crusher, also called hammer breaker, crushes materials in the form of impact. It can directly crush materials with a particle size of 600-1800mm into 25mm or less.

Product Introduction

Hammer crusher, also called hammer breaker, crushes materials in the form of impact. It can directly crush materials with a particle size of 600-1800mm into 25mm or less. The hammer crusher is applicable to crushing materials of medium hardness in industrial sectors such as cement, chemical industry, electric power, and metallurgy, e.g. The secondary and fine crushing of limestone, slag, coke, and coal.

Strengths

1. One molding:

The hammer crusher will directly break the large particle size material to the required particle size, without multiple crushing, improving the crushing efficiency and reducing the operating cost.

2. Easy to adjust:

the crushing size of the crusher can be adjusted according to the needs of users, through the method of adding or reducing gaskets to meet the production needs of different customers.

3. Wear resistance and impact resistance:

The hammer head is cast with high manganese steel, which has the advantages of high density, wear resistance and impact resistance, and can extend the service life of the equipment.

4.Energy saving and environmental protection:

The hammer crusher has low noise, small vibration and high crushing efficiency during operation, which is conducive to energy saving and environmental protection.

Basic structureworking principle

The hammer crusher is mainly composed of engine, shell, hammer wheel, screen and reducer. When working, the material enters the crusher through the feed port, is affected by the impact and shear of the high-speed rotating hammer head, and is broken into small pieces. The crushed material is then discharged through the screen to achieve the required particle size requirements.

Applicationindustry

Hammer crusher is widely used in mining, metallurgy, building materials, chemical industry, feed and other industries, can be terrazzo, silica stone, coal and other medium and medium hardness materials to do medium and fine crushing operation. For example, it can be used to break bluestone, pebbles, granite, shale, coal, slag, lignite and other ores or hard materials.

Applicablematerial

Hammer crusher is suitable for crushing materials of various hardness, including but not limited to limestone, coal, slag, coke and other medium hardness materials. At the same time, it can also break bluestone, pebbles, granite and other ores or hard materials.

    Technical Data

    Specification Production capacity (t/h) Motor power (kw)
    PCΦ300x400    5-10 4P 11KW
    PCΦ400x600 10-22 4P 22KW
    PCΦ600x800 18-40 6P 55KW
    PCΦ800x1000 25-50 8P 75KW
    PCΦ1000x1000 30-55 8P 90KW
