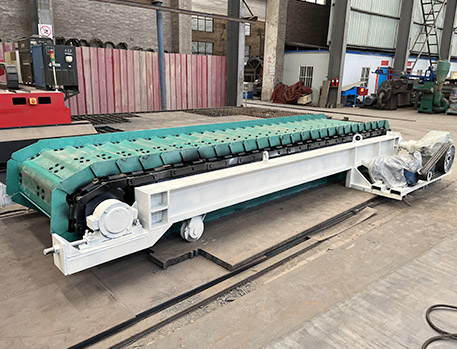

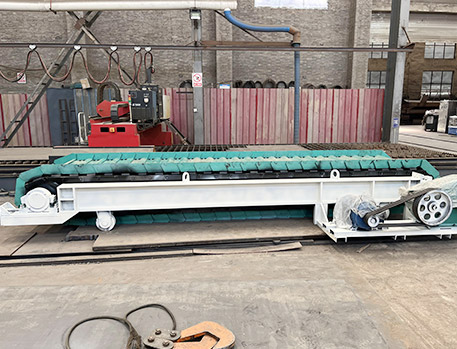

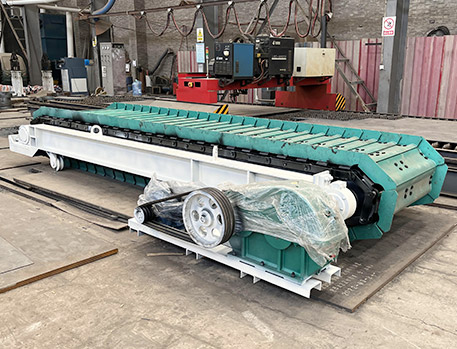

Chain conveyor

The chain conveyor takes the standard chain plate as the bearing surface and is driven by the motor reducer. We can form a wide chain plate conveyor with a speed difference through the parallel of multiple chain plates so that conveying is conducted by single chain plate without extrusion

Product Introduction

Chain conveyor is a conveyor that uses a chain to pull and carry materials or is loaded with slats, metal mesh belts and roller tables installed on the chain. According to the different bearing surfaces installed on the chain, it can be divided into chain type, chain plate type, chain mesh type, slat type, chain bucket type, pallet type, trolley type and other types. This conveyor has the characteristics of large conveying capacity, low conveying energy consumption, and can be used flexibly and quickly, can be multi-point feeding, two-way conveying, can be elevated, ground or pit layout, can be horizontal or inclination ≤15° conveying powder or small particle like loose materials.


1. The conveying surface of the chain conveyor is flat and smooth, with low friction, and the transition of materials between the conveying lines is smooth. It can convey all kinds of glass bottles, PET bottles, cans and other materials, as well as all kinds of bags;

2. The chain plates are made of stainless steel and engineering plastics and have a wide variety of specifications, which can be selected according to the conveying materials and process requirements, and can meet different needs of various industries;

3. The frame is made of aluminum profile, ordinary carbon steel or stainless steel.

4. It can carry large loads, and can be used for electric vehicles, motorcycles, generators and other industries;

5. The conveying speed is accurate and stable, which can ensure accurate synchronous conveying;

6. The chain conveyor can generally be directly washed with water or soaked in water. The equipment is easy to clean and can meet the hygienic requirements of the food and beverage industries;

7. The equipment is laid out flexibly, which can complete horizontal, inclined and turning conveying on one conveyor line;

8. The equipment is simple in structure and easy to maintain.


Chain conveyors have a wide range of applications in many fields, including but not limited to electronic and electrical industry, mechanical and electrical industry, metallurgy, chemical industry, building materials and other industries. In the assembly and processing of electronic products, chain conveyors can transport materials from one station to another, improving production efficiency. On the assembly line of mechanical and electrical equipment, the chain conveyor can stably and quickly transport various parts to ensure the continuous operation of the production line. In addition, chain conveyors can also adapt to a variety of working environments, including indoor, outdoor and harsh special environments.


Chain plate conveyor is suitable for conveying powder, granular, small block materials, such as cement, yellow sand, limestone powder, coke powder, coal powder, fly ash, wood chips, crushed ice, stone powder, graphite, clay powder, quartz sand, iron ore powder, crushed slag and so on

Structural principle

Chain conveyor is mainly composed of driving device, chain plate, transmission chain, guide wheel and so on. The drive device provides power through the motor, reducer, etc., to drive the chain movement. As a bearing tool for conveying materials, the chain plate is fixed on the chain to achieve movement. The transmission chain plays the role of transmitting power, and the power of the driving device is transmitted to the chain and the chain plate. The guide wheel plays a guiding role to ensure that the chain moves on a fixed track.
