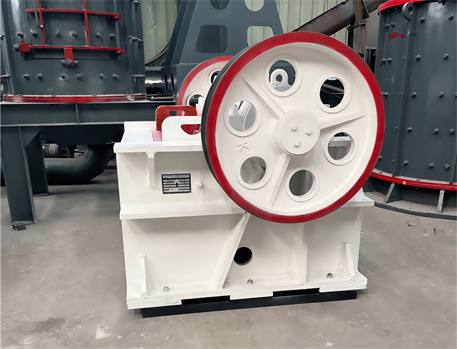

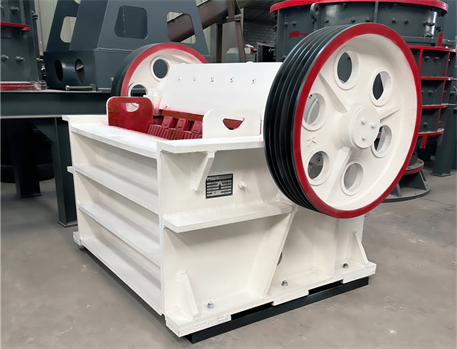

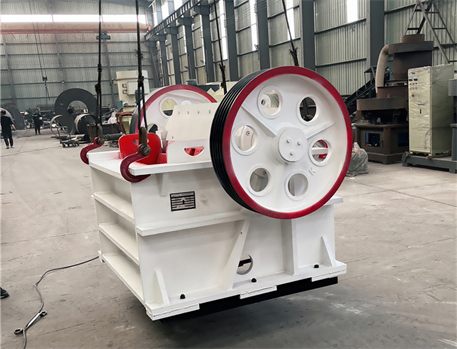

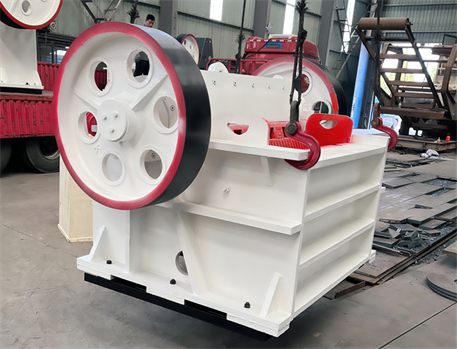

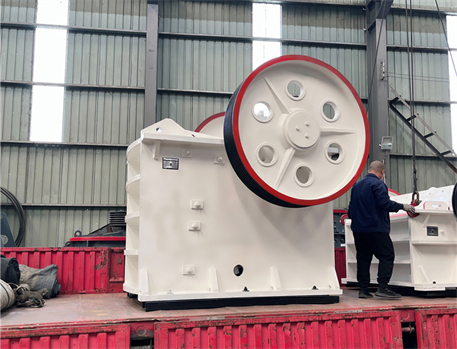

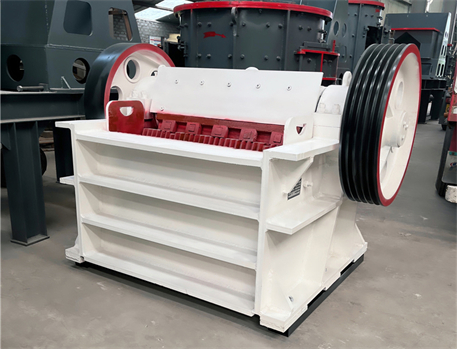

PE fine jaw crusher

PE fine crushing jaw crusher is the key equipment in co-ore production, especially suitable for medium-size crushing of various ores and large materials. It is made of high strength manganese steel material, one molding casting, with wear resistance, pressure resistance, long life and other advantages. This kind of crusher is widely used in many industries such as mining, smelting, construction, highway, railway, water conservancy and chemical industry.

The working principle of PE fine crushing jaw crusher is mainly based on the bending extrusion crushing method. The electric motor drives the belt and pulley, and makes the jaw move up and down through an eccentric shaft. When the moving jaw rises, the Angle between the elbow plate and the moving jaw becomes larger, which pushes the moving jaw plate to the fixed jaw plate. At the same time, the material is crushed by extrusion, rubbing, grinding and so on. When the moving jaw goes down, the Angle between the elbow plate and the moving jaw becomes smaller, the moving jaw plate leaves the fixed jaw plate under the action of the pull rod and the spring, and the broken material is discharged from the lower mouth of the crushing chamber. With the continuous rotation of the motor, the crusher jaw is periodically crushed and discharged to achieve mass production.

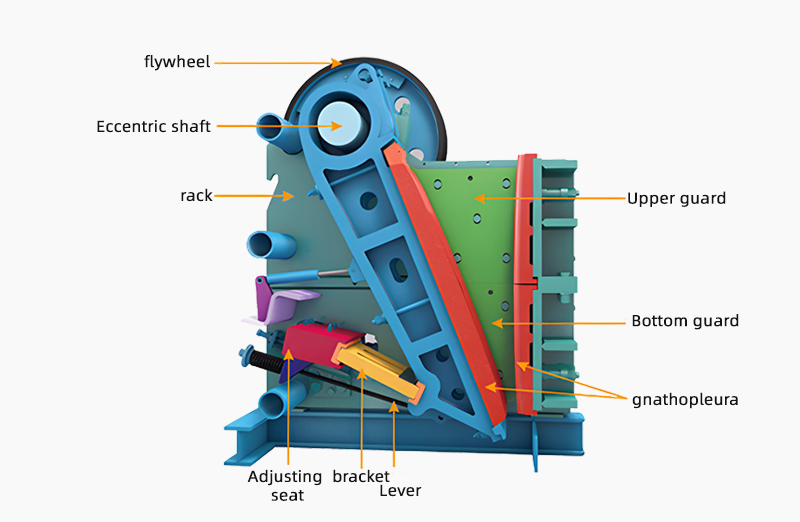

Constituentstructure

PE fine crusher jaw crusher is widely used in mining, smelting, building materials, road, railway, water conservancy and chemical industry and other industries, all kinds of ore and rock for coarse or medium crushing operation.

PE fine crusher is suitable for crushing all kinds of ores and rocks with compressive strength not exceeding 320Mpa, such as pebbles, granite, basalt, limestone, quartz stone, iron ore, gold, copper and so on.

1.The crushing chamber is deep and has no dead zone, which improves the feeding capacity and production.

2. Large crushing ratio, uniform product particle size, to meet a variety of particle size needs.

3.The gasket type discharge port adjustment device is reliable and convenient, and the adjustment range is large, which increases the flexibility of the equipment.

4. The lubrication system is safe and reliable, the parts are easy to replace, and the maintenance workload is small.

5. Simple structure, reliable work, low operating costs.

6. Equipment energy saving: 15% to 30% energy saving for a single machine, more than double the system energy saving.

7. The adjustment range of discharge port is large, which can meet the requirements of different users.

8. Low noise, less dust, in line with environmental requirements.
